UPS - 3 Phase

  • MODULINE SERIES

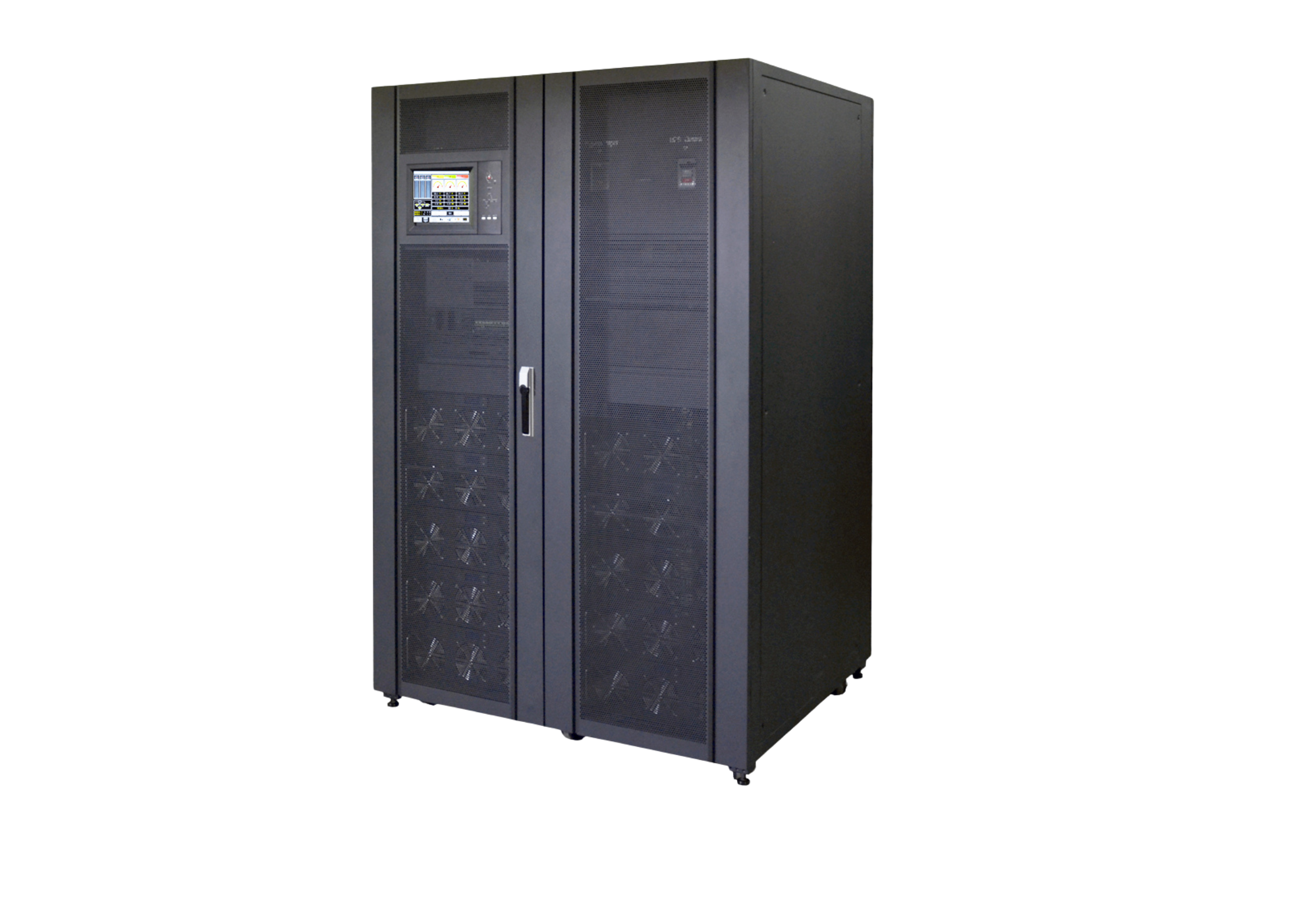

MODULINE SERIES

ONLINE (3- LEVEL) / 50 - 500 kVA


Moduline Series UPS, using the latest generation power components, new generation 3-Level technology, has the flexibility to operate between 50 and 500kVA powers with a single cabinet thanks to its hot-swappable modular structure. It offers a functional, safe, easy to install and use product with the latest power conversion technology. 3 units can be configured in parallel for a capacity up to 1500kVA.)
Product Catalogue
Product Introduction Video
  • Features

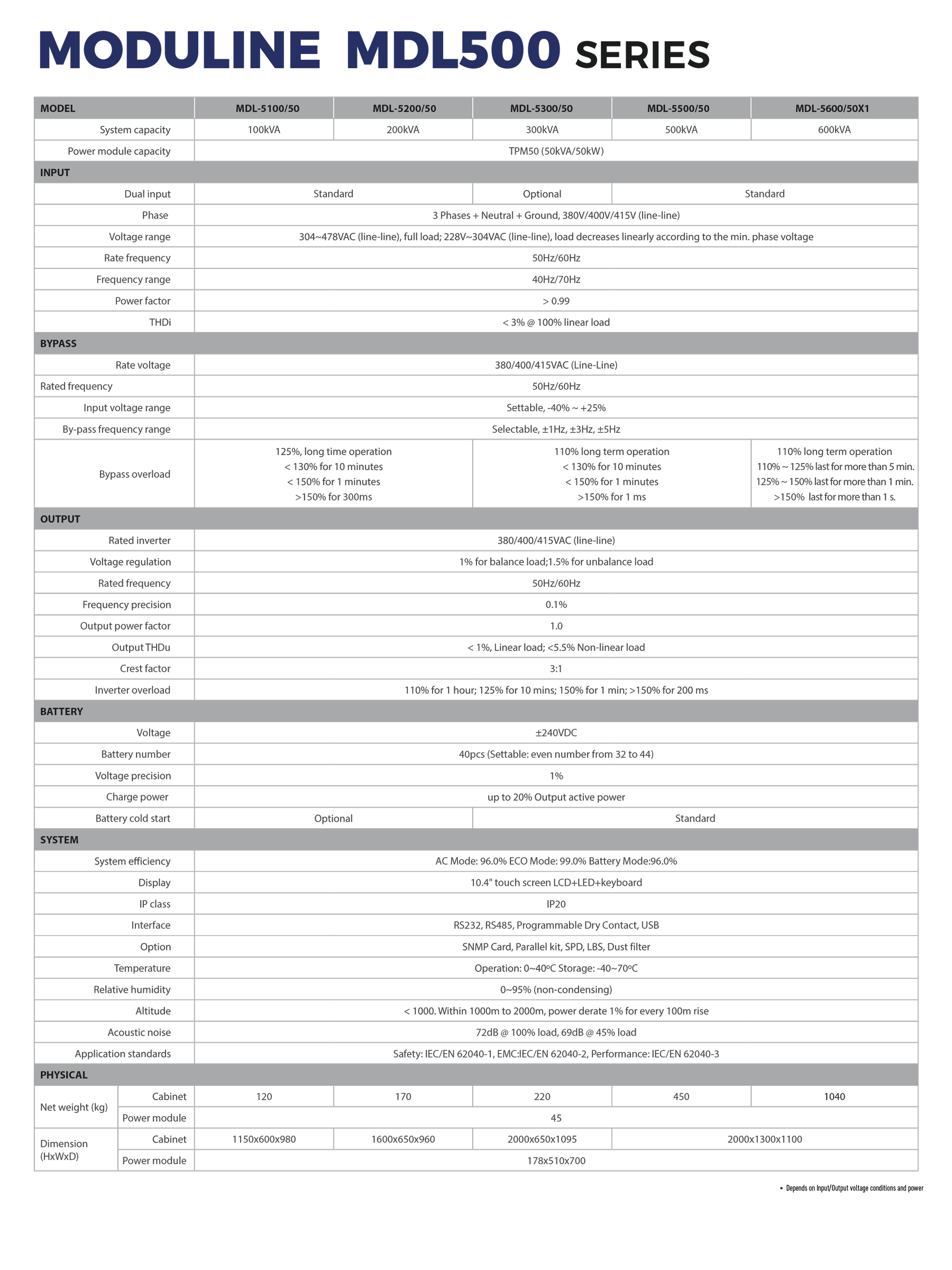

  • Technicial Specifications
  • Software
  • Accessories
  • Models
  • 3 Level IGBT Technology Full Rated Power: kW=kVA
  • Online Double Conversion Technology (Class VFI-SS-111)
  • IGBT PWM Rectifier & Inverter Technology
  • Multiprocessor digital control 96% high efficiency
  • Up to 98% efficiency with Eco mode feature
  • Low input current TDH (≤3%)
  • High input power factor (≥0.99)
  • Low output range THD (≤2%)
  • Low response time (≤2ms)
  • Automatic soft start
  • Input that can change depending on the load that reduces battery voltage
  • Ability to start from battery
  • 3 units can be configured in parallel
  • intelligent backup management (n,n+1and n+x)
  • 256 detailed real-time event records
  • The system is from 50kVA in a single cabinet capacity up to 500kVA, up to 1500kVA configurable for 3 units in parallel
  • Double entry
  • Static and Manual Bypass system
  • Optimum footprint and ease of maintenance
  • Data analysis via user panel
  • Wide range of communication options
  • Remote monitoring and management software
  • Excellent generator compatibility
  • With programmable dry contact
  • Advanced battery management
  • 10.4” touch color LCD with graphic display
  • Independent LCD for each power module
  • DC/DC Charger/Booster Ability to connect flexible number of batteries
  • Wide input voltage operating range
  • Operating voltage (up to -36%)
  • 4U height 50kVA power module, capacity provides ease of expansion
  • Short circuit, overload, lightning and voltage surge protection up to 8 parallel connections Intelligent backup management (n,n+1and n+x) 256 detailed real-time event records











Parallel Card

GSM Model

Lion Battery BMS

Dry Contact

Isolation Transformer

SNMP
