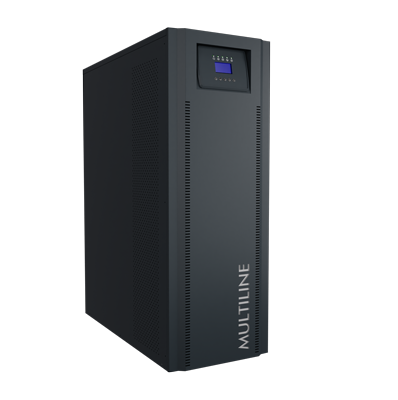

MULTILINE
ONLINE (3- LEVEL) / 10 - 120 kVA/kW
MULTILINE series is a UPS range featuring high-performance, Innovative 3-Level design with On-line double conversion (VFI) technology that provides a reliable, high-quality power supply and, at the same time, achieves significant energy and financial savings in terms of installation and operating costs.
Particularly noteworthy is the unit’s input power factor (PF=1) and its extremely low distortion rate (THDi ≤3%), which help to reduce installation and operating costs, and contribute to improving the quality of the electrical network.
The output power factor (PF=1) also stands out, providing optimum electrical protection for computer systems and low harmonic output distortion (THDv ≤2%), enabling it to protect any type of load (inductive, resistive, capacitive or mixed). In addition, the performance achieved (up to 96% in On-line mode at half load and 98% in Smart Eco-mode) produces significant energy consumption savings and reduces air conditioning needs.
For a full optimum solution, the MULTILINE provides maximum adaptability , the possibility of parallel redundant expansion and extensive communication options. Finally, also worth noting is the unit’s lightweight design and reduced dimensions, enabling it to be easily installed and ensuring that footprint is minimal.
Product Introduction Video
- Features

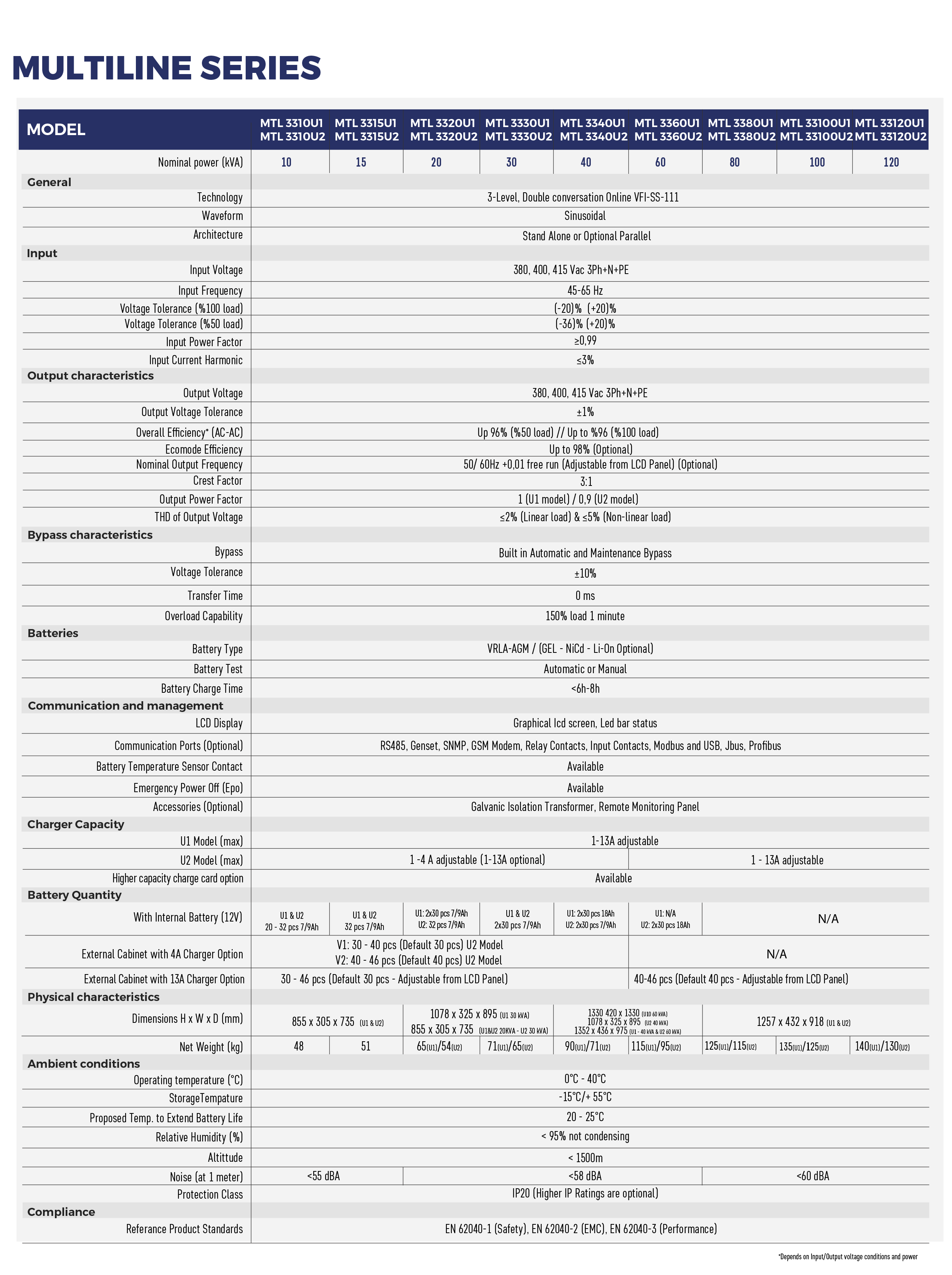

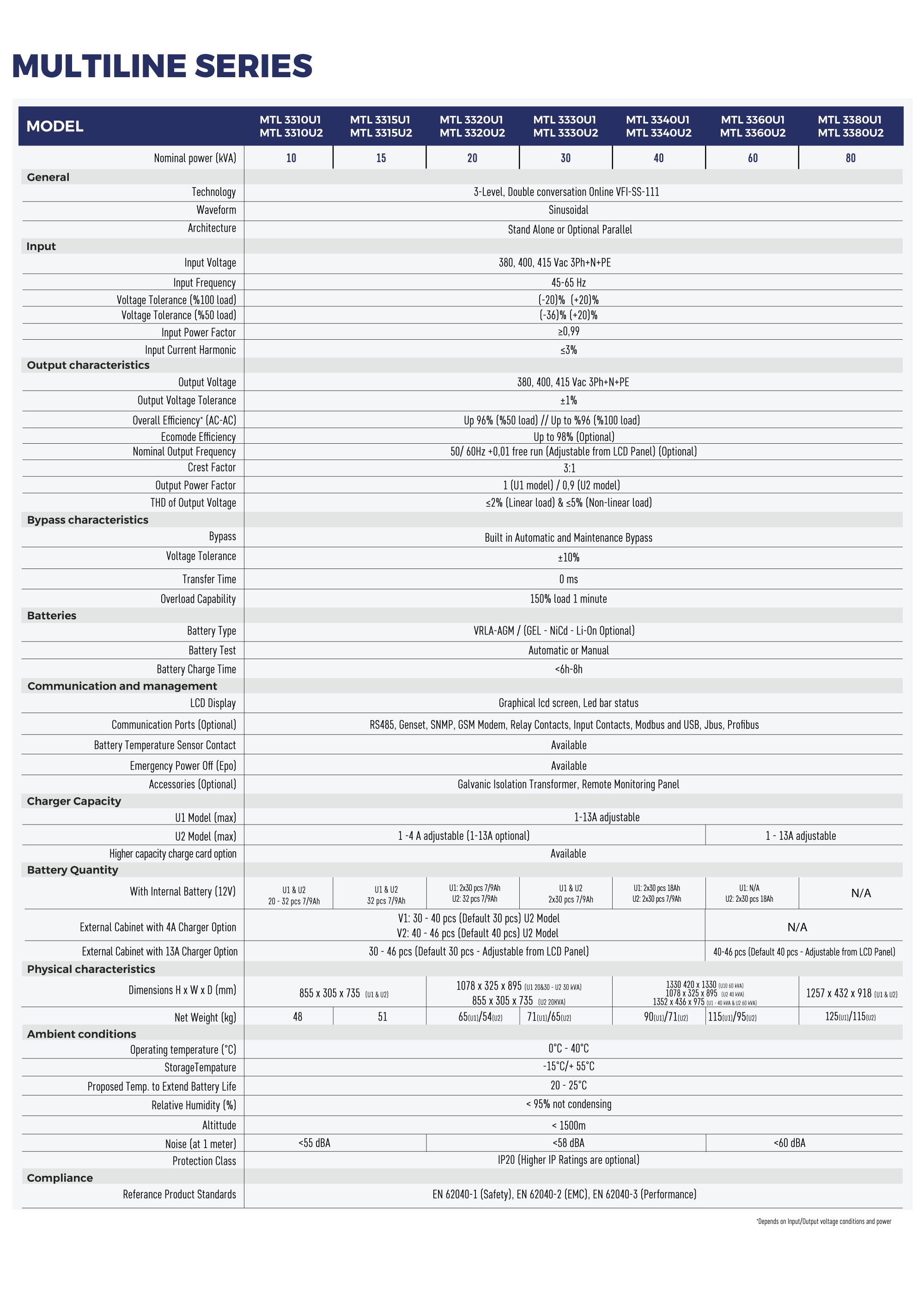

- Technicial Specifications
- Software
- Accessories
- Models
- 3-Level IGBT Topology
- High Output Power Factor 1 (kW=kVA)
- IGBT PWM Rectifier & Inverter Technology
- High AC- AC Efficiency up to 96%
- Higher efficiency with eco-mode (up to 98%)
- Multi Processor Digital Control
- Low Input Current THD (≤3%)
- Utility Input Power Factor (>0.99)
- Low output voltage THD (≤2%)
- Short recovery time (≤2ms)
- Cold start battery start operation
- Optional Dual Input
- Advanced Battery Management
- DC/DC Charger/Booster
- Temperature compasated tripple charge system
- Flexible battery count
- Wide Input Voltage Range
- Variable input low voltage depending on loading percentage (up to -36%)
- Short Circuit,Overload,Lightning and Surge Protection
- Paralellable connection availability up to 8 units
- Intelligent redundancy management (n, n+1 and n+x)
- Low output voltage THD (≤2%)
- 256 Real Time Event Log with Detailed Parameters
- Built-in Static&Manual Bypass
- Small Footprint and Easy Maintenance
- Data analyzing over user interface
- Advanced Communication Capabilities (SNMP, RS485-Modbus, RS232, dry contacts)
- Epo (Emergency power off ),generator and contacts
- Remote monitoring and management software
- Perfect Generator Compatibility with Automatic soft-start feature
