UPS - Three Phase

  • MASTERLINE

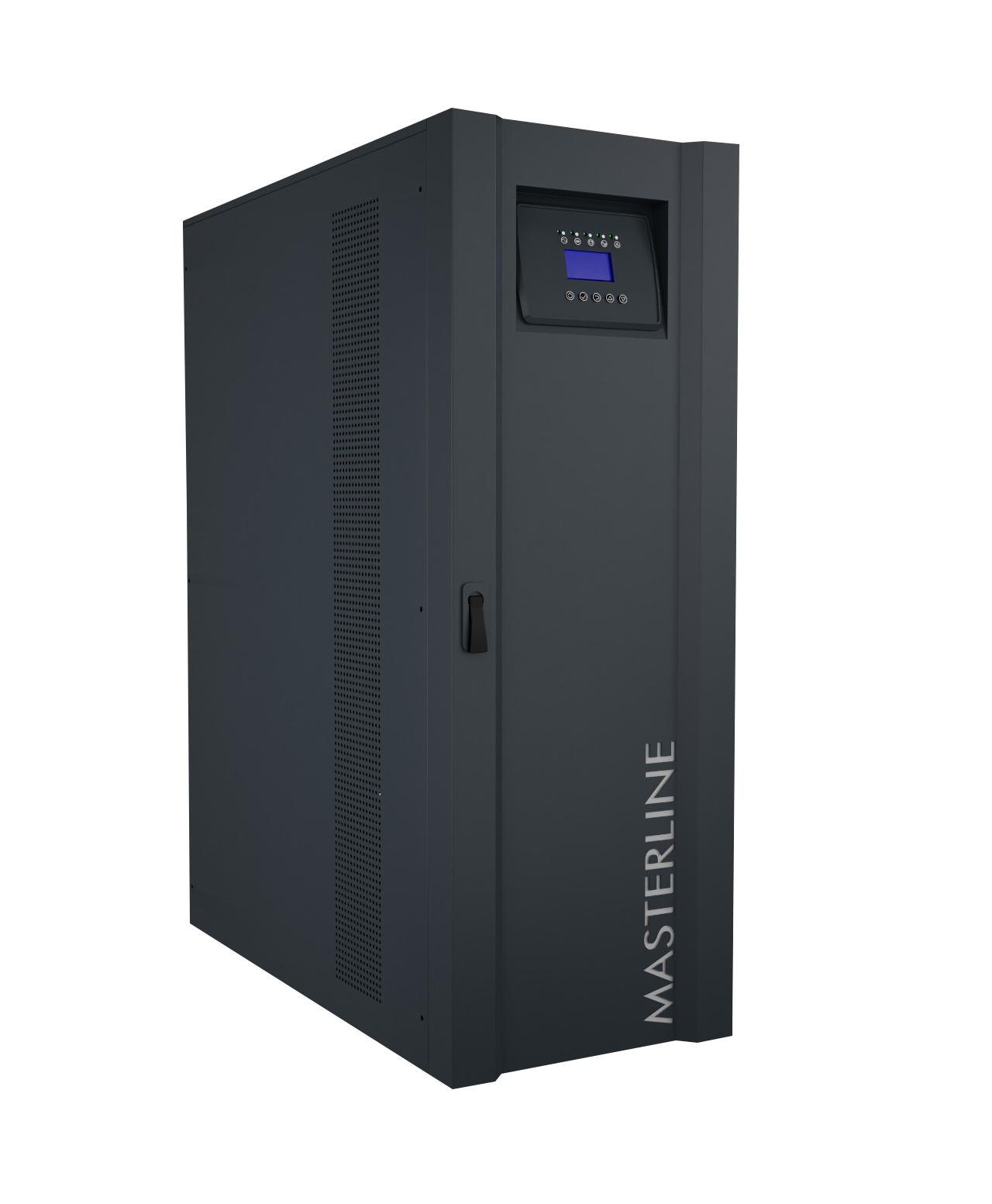

MASTERLINE

ONLINE (3- LEVEL) / 80 - 200 kVA/kW

MASTERLINE series consists of three-phase UPSs that combine very low total cost of ownership (TCO) with very high efficiency and compact design, providing high-quality uninterruptible power for all critical applications. The technology incorporated offers one of the highest efficiencies on the market in VFI mode with integrated the latest IGBT three-level design .

MASTERLINE is designed to meet the power requirements of tomorrow, offering the highest efficiency in the market and low running cost. Thanks to the Efficiency Control System MASTERLINE also guarantees the highest levels of efficiency even at partial loads.

Its unity power factor and easy system upgrading make it the ideal solution for the business continuity of any Industrial and IT application.



Product Catalogue
Product Introduction Video
  • Features
  • Technicial Specifications
  • Software
  • Accessories
  • Models
  • 3-Level IGBT Topology
  • High Output Power Factor 1 (kW=kVA)
  • IGBT PWM Rectifier & Inverter Technology
  • High AC- AC Efficiency up to 96%
  • Higher efficiency with eco-mode (up to 98%)
  • Multi Processor Digital Control
  • Low Input Current THD (≤3%)
  • Utility Input Power Factor (>0.99)
  • Low output voltage THD (≤2%)
  • Short recovery time (≤2ms)
  • Cold start battery start operation
  • Optional Dual Input
  • Advanced Battery Management
  • DC/DC Charger/Booster
  • Temperature compasated tripple charge system
  • Flexible battery count
  • Wide Input Voltage Range
  • Variable input low voltage depending on loading percentage (up to -36%)
  • Short Circuit,Overload,Lightning and Surge Protection
  • Paralellable connection availability up to 8 units
  • Intelligent redundancy management (n, n+1 and n+x)
  • Low output voltage THD (≤2%)
  • 256 Real Time Event Log with Detailed Parameters
  • Built-in Static&Manual Bypass
  • Small Footprint and Easy Maintenance
  • Data analyzing over user interface
  • Advanced Communication Capabilities  (SNMP, RS485-Modbus, RS232, dry contacts)
  • Epo (Emergency power off ),generator and contacts
  • Remote monitoring and management software
  • Perfect Generator Compatibility with Automatic soft-start feature
