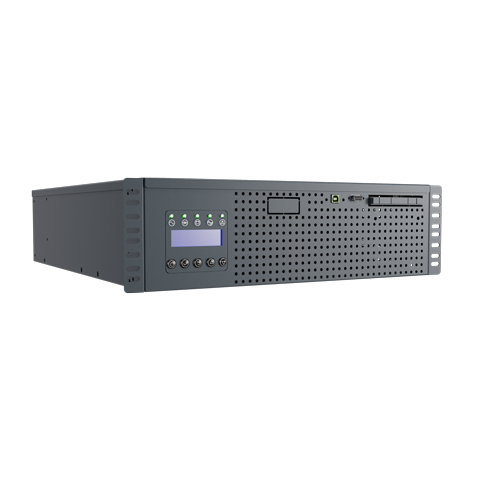

MONOLINE R

ONLINE (3- LEVEL) / 6-20 kVA/kW


Monoline R UPS are designed and manufactured using the latest technology and components to provide maximum protection for the powered loads and optimize energy savings without any impact on downstream systems.

The range includes 6-20 kVA single phase input/single phase output models with the latest three-level technology online double conversion technology (VFI):

The load is continuously driven by the inverter, which provides a sinusoidal voltage filtered and stabilized in terms of shape and frequency. Input and output filters provide significantly greater immunity to mains outages and lightning strikes.

In terms of technology and performance, Monoline R is one of the best UPS on the market today: three-level inverter to achieve 95% efficiency at half load, output power factor 1 to increase the efficiency of systems and devices and reduce power system losses.
Product Catalogue
Product Introduction Video
  • Features
  • Technicial Specifications
  • Software
  • Accessories
  • Models

• 3-Level IGBT Topology

• High Output Power Factor 1 (kW=kVA)

• On Line-Double Conversion Technology (Class VFI-SS-111)

• IGBT PWM Rectifier & Inverter Technology

• High AC- AC Efficiency up to 95%

• Higher efficiency with eco-mode (up to 98%)

• Low Input Current THD (≤3%)*

• Utility Input Power Factor (>0.99)*

• Cold start function

• Increase battery life time up to %35 with smart charger

• Temperature compasated tripple charge system

• Flexible battery count

• Wide Input Voltage Range

• Higher fan life time with intelligent fan speed control

• Operate as frequency converter (50hz/60hz)

• Variable input low voltage depending on loading percentage (up to -36%)

• Short Circuit,Overload,Lightning and Surge Protection

• Paralellable connection availability up to 4 units

• 256 Real Time Event Log with Detailed Parameters

• Built-in Static&Manual Bypass

• Small Footprint and Easy Maintenance

•Data analyzing over user interface

• Advanced Communication Capabilities  (SNMP, RS485-Modbus, RS232, dry contacts)

• Epo (Emergency power off ),generator and contacts

• Remote monitoring and management software

• Perfect Generator Compatibility with Automatic soft-start feature
