UPS - Single Phase

  • MONOLINE

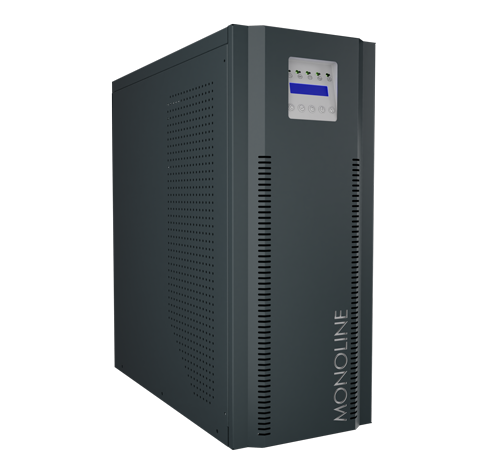

MONOLINE

ONLINE (3- LEVEL) / 3-20 kVA/kW

Monoline Ups is designed and built using state-of-the-art technology and components to provide maximum protection to the powered loads with no impact on downstream systems and optimised energy savings.
The series includes 3-20 kVA single/singlephase and 10-20 kVA single/three-phase input single-phase output models with on-line double conversion technology (VFI) with latestest three level technology:

the load is powered continuously by the inverter which supplies a sinusoidal voltage, filtered and stabilised in terms of form and frequency. Input and output filters provide significant further immunity from mains disturbances and lightning strikes.

In terms of technology and performance, Monoliner is one of the best UPS available on the market today: three level inventer to achieve 95% efficiency af half load, output power factor 1 to increase in efficiency of system and devices and reduce power system losses.

Product Catalogue
Product Introduction Video
  • Features

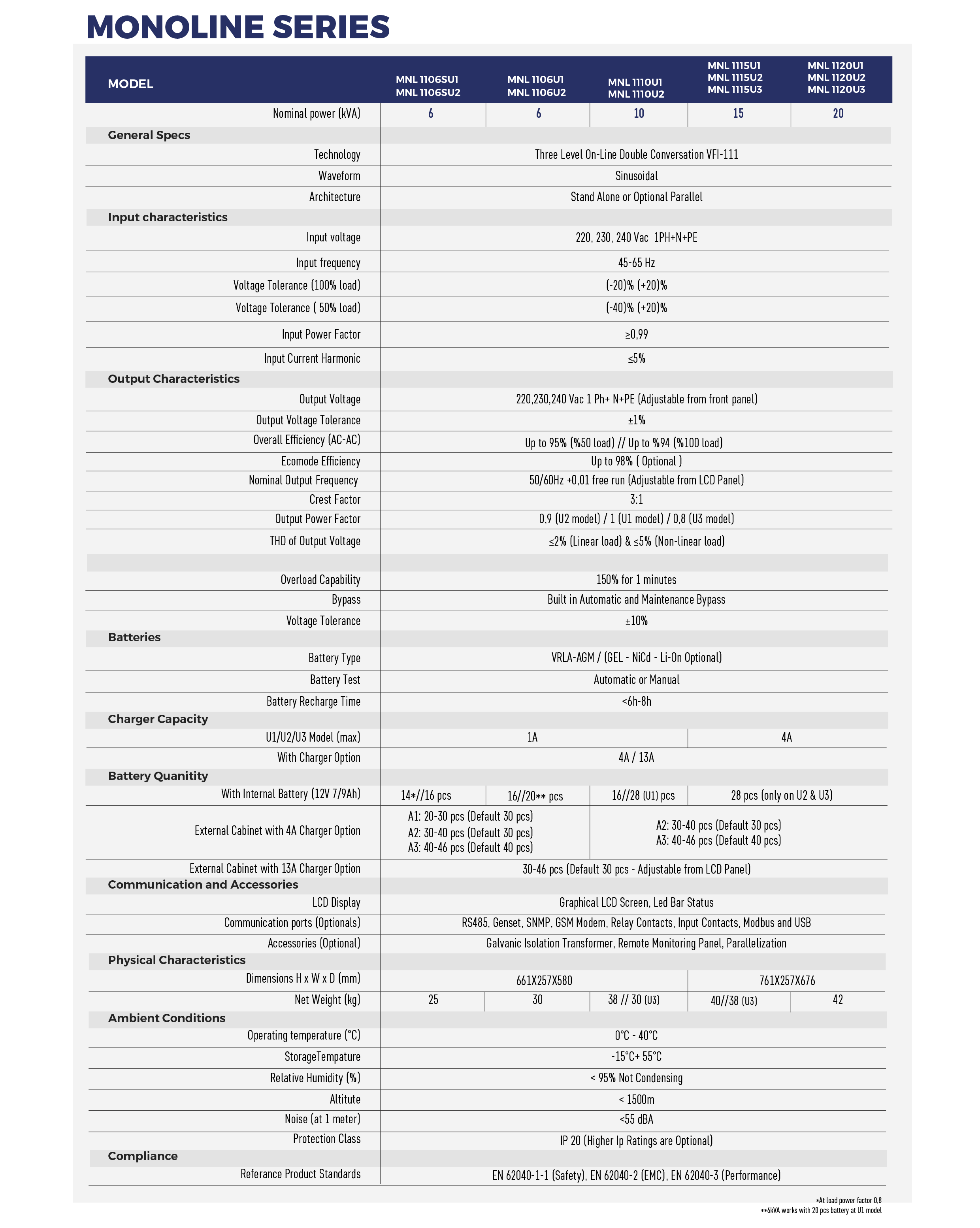

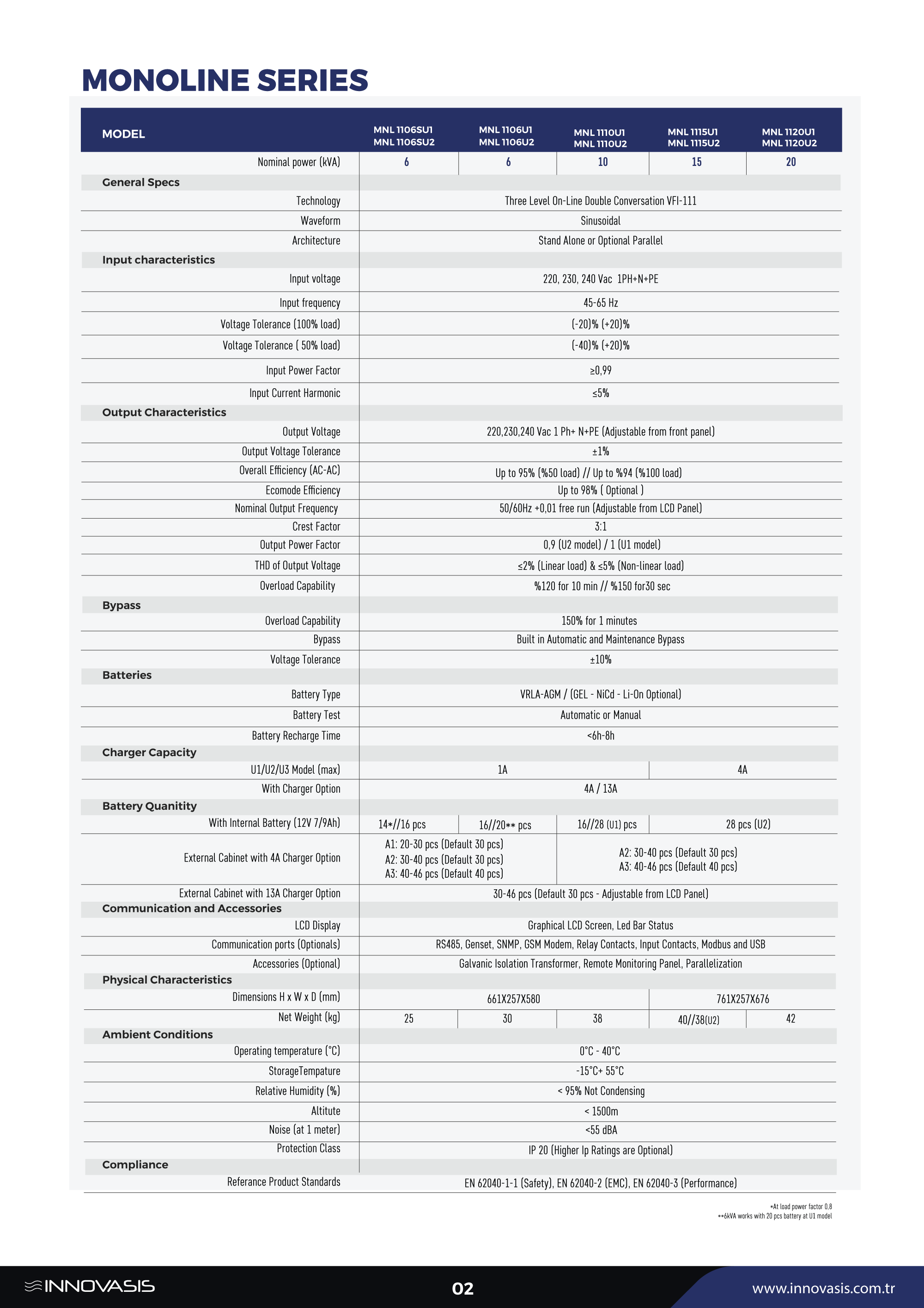

  • Technicial Specifications
  • Software
  • Accessories
  • Models

• 3-Level IGBT Topology

• High Output Power Factor 1 (kW=kVA)

• On Line-Double Conversion Technology (Class VFI-SS-111)

• IGBT PWM Rectifier & Inverter Technology

• High AC- AC Efficiency up to 95%

• Higher efficiency with eco-mode (up to 98%)

• Low Input Current THD (≤3%)*

• Utility Input Power Factor (>0.99)*

• Cold start function

• Increase battery life time up to %35 with smart charger

• Temperature compasated tripple charge system

• Flexible battery count

• Wide Input Voltage Range

• Higher fan life time with intelligent fan speed control

• Operate as frequency converter (50hz/60hz)

• Variable input low voltage depending on loading percentage (up to -36%)

• Short Circuit,Overload,Lightning and Surge Protection

• Paralellable connection availability up to 4 units

• 256 Real Time Event Log with Detailed Parameters

• Built-in Static&Manual Bypass

• Small Footprint and Easy Maintenance

•Data analyzing over user interface

• Advanced Communication Capabilities  (SNMP, RS485-Modbus, RS232, dry contacts)

• Epo (Emergency power off ),generator and contacts

• Remote monitoring and management software

• Perfect Generator Compatibility with Automatic soft-start feature
