RAILWAY POWER SYSTEMS
RAILWAY POWER SYSTEMS / 10-120 kVA

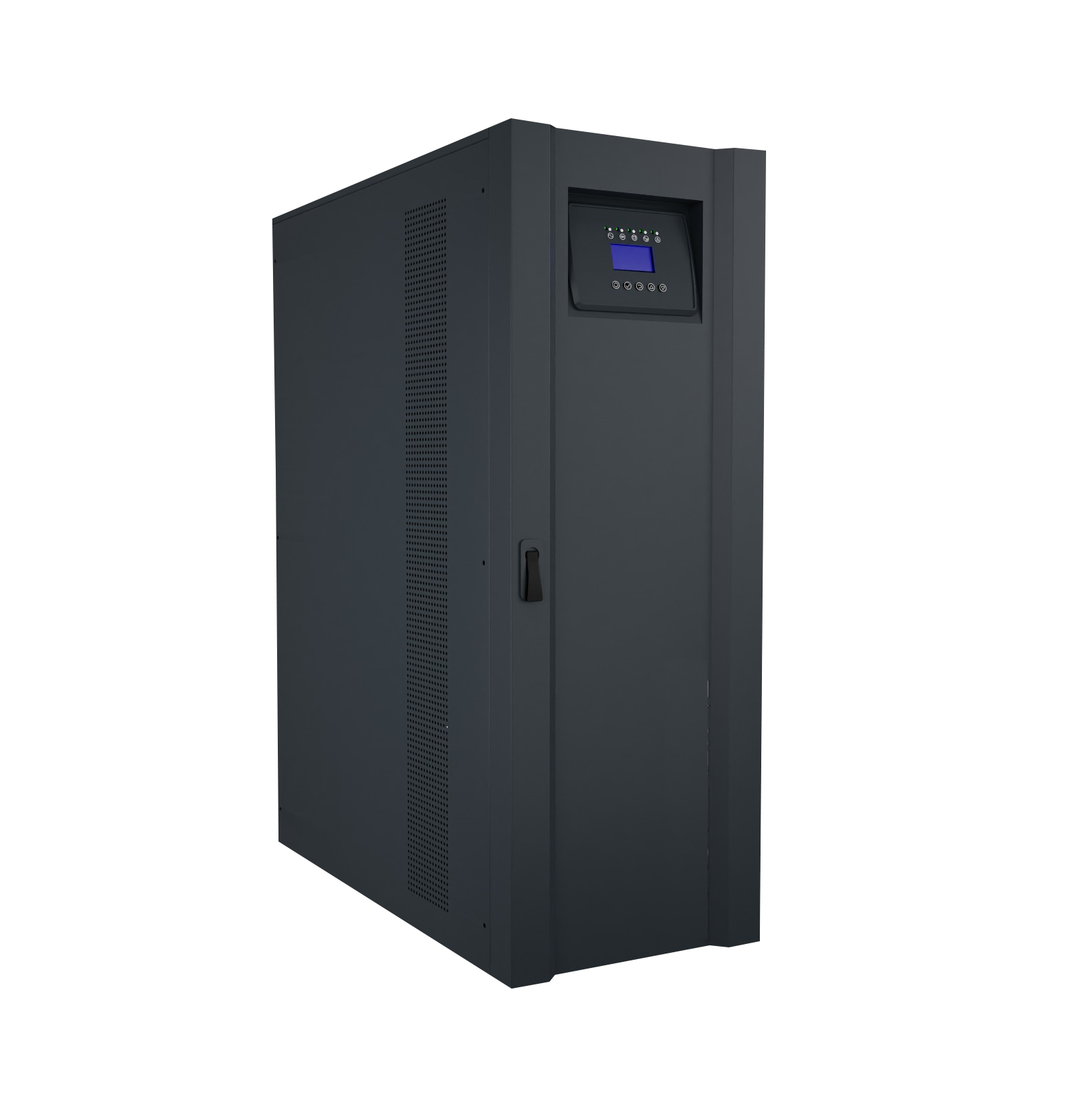

The INNOVASIS MTLT Series uses the latest DSP technology, which has been developed specifically for railway applications and can be programmed to suit a wide range of electrical conditions. With the MTLT series, efficiency, reliability and functionality have been increased to the highest levels allowed by current technology.
Product Introduction Video
- Features

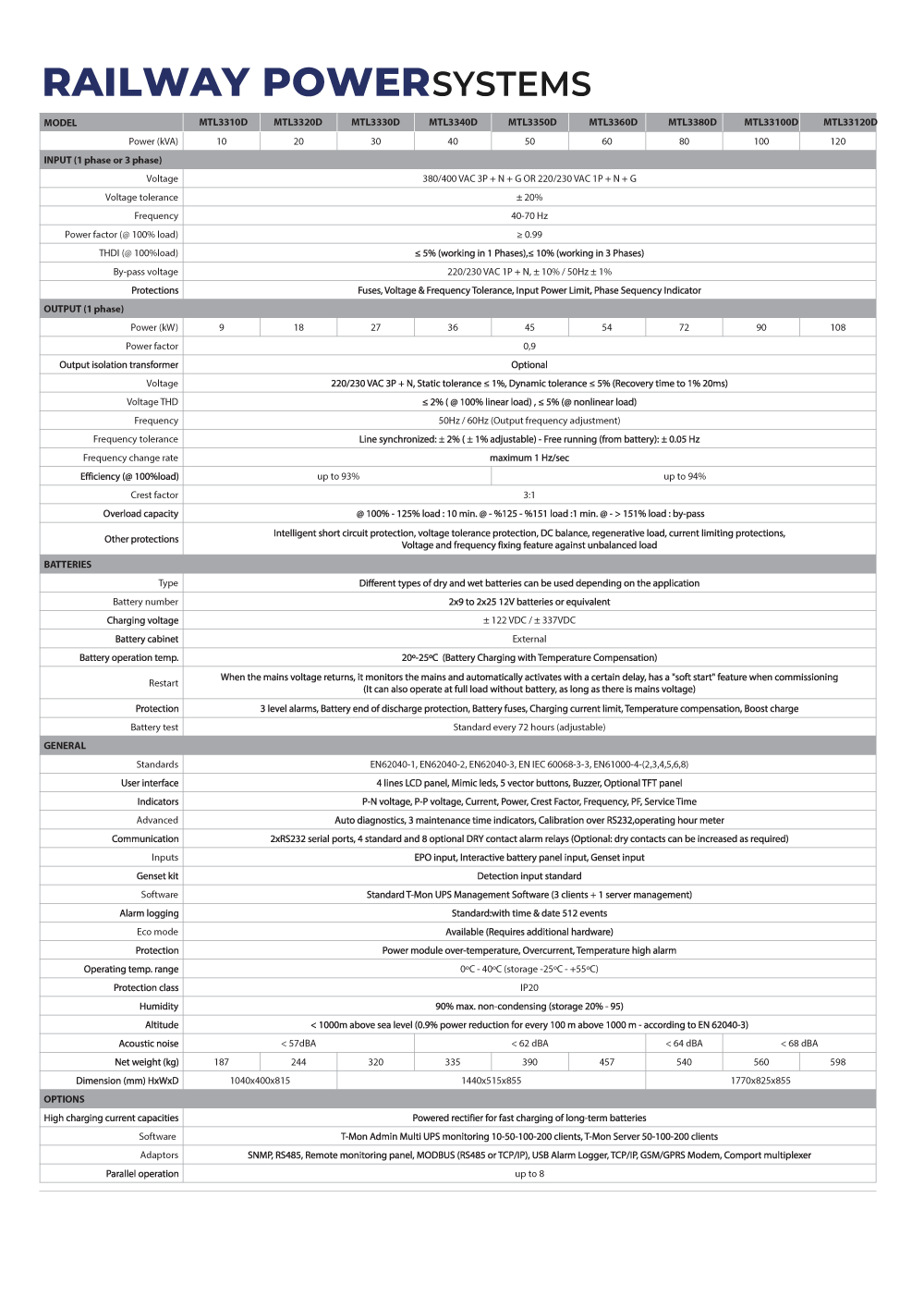

- Technicial Specifications
- Software
- Accessories
- Models
Working with 3-phase or 1-phase input voltage
High charge current capacity
Low current harmonic distortion at input
High input power factor Cold start feature
Static and maintenance bypass switch
Short circuit and overload protection at output
External REPO input
512 event record (512 events, 45000 alarms)
Clock and calendar
Automatic battery test, remaining battery time indicator
Temperature compensated charging system
2 RS232 serial ports and 12 dry contact outputs
3 DSP controlled modular structure
Optional SNMP and MODBUS adapters
Optional graphic panel
