RECTIFIERS & BATTERY CHARGER
RECTIFIERS & BATTERY CHARGER / 10A - 200A
They are DSP-controlled devices with an internal isolation transformer at the input, designed to convert 1-phase or 3-phase AC voltage into smooth and regulated DC voltage.
Product Introduction Video
- Features

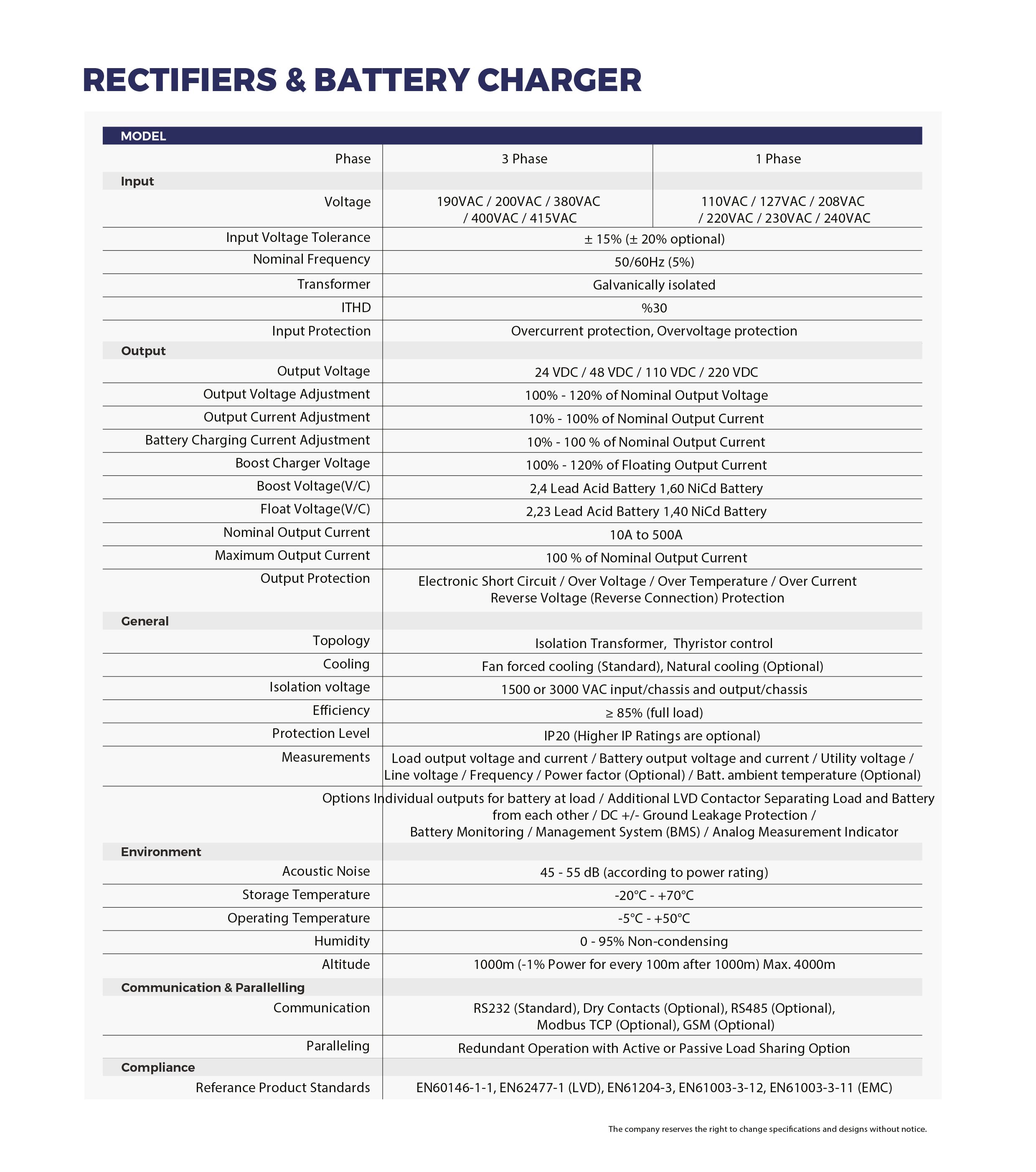

- Technicial Specifications
- Software
- Accessories
- Models
Internal isolation transformer at input
Float charge, equalizing charge and boost charge modes
DC Low / High, Line Failure, Over Temperature, Short Circuit protections
Operation as voltage source or current source
Programmable current limitation
Automatic and manual charge modes
Low output voltage ripple and high reliability
Calibration of measurements from front panel
Programmable dry contacts
256 Real Time Event Log with Detailed Parameters
Advanced Communication Capabilities
Soft start
