Automatic Voltage Regulators

  • STATICA 33 10 - 150 kVA

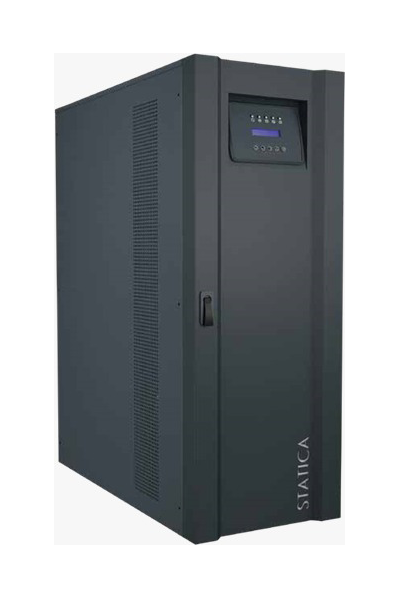

STATICA 33 10 - 150 kVA

STATICA 33 / 10 - 150 kVA

3 phase input, 3 phase output Regulators that prevent increases, decreases and all imbalances in the network voltage and regulate voltage, as well as electronically provided protection; In case of voltage drops and rises outside the adjustment range, it electro-mechanically cuts off the output voltage and prevents possible damage that may occur as a result.

Product Catalogue
Product Introduction Video
  • Features

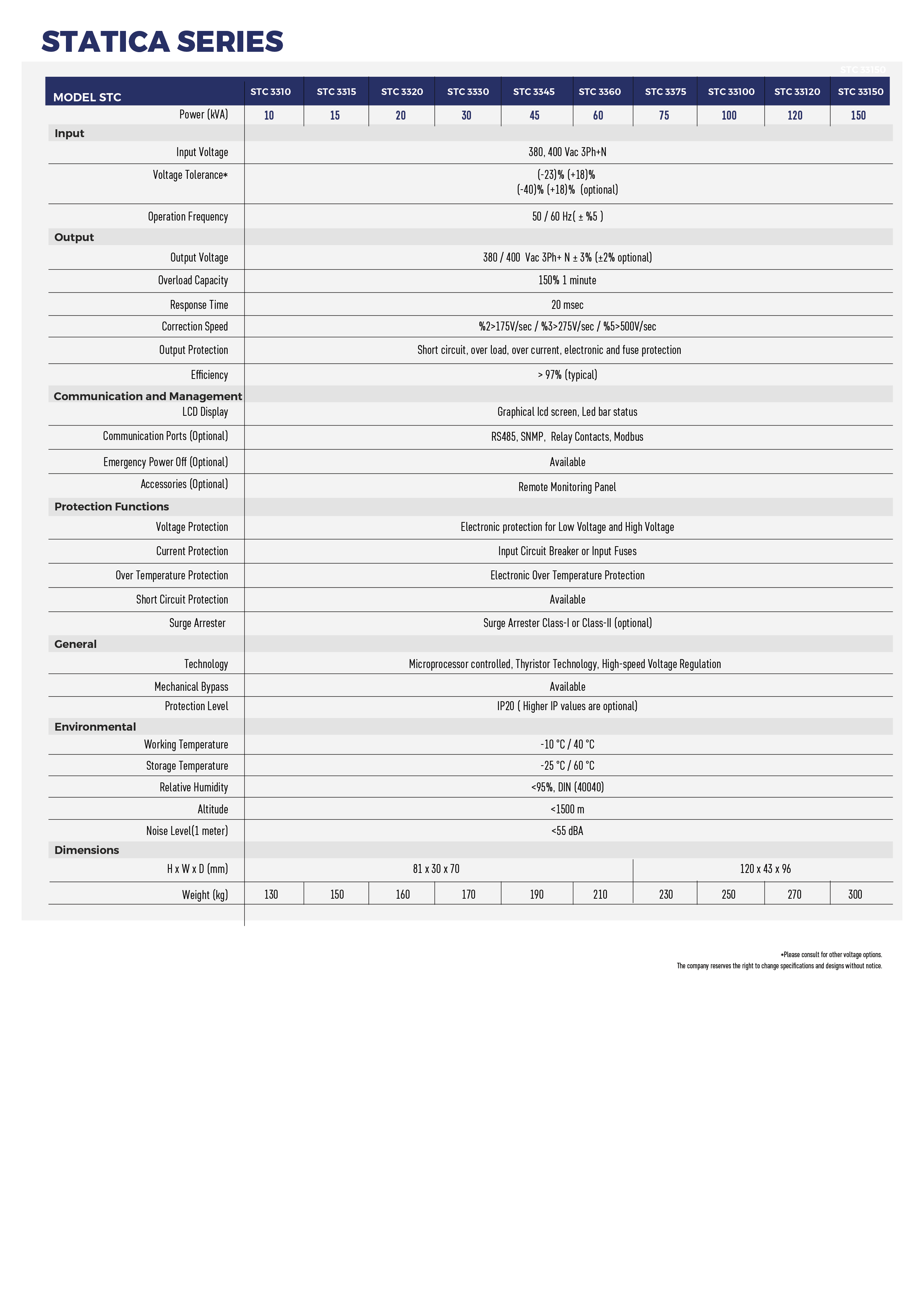

  • Technicial Specifications
  • Software
  • Accessories
  • Models

* 3 phase in / 3 phase out
* Static AVR
* Power 10-2000 kVA
* Input Voltage 300- 480 VAC 3 F+N
* Input Frequency 50 Hz
* Output Voltage 380 / 400 VAC 3 F+N
* Output Voltage Tolerance + – % 2
* Regulation Rate 5000 V / Sec
* Efficiency >% 97
* Operating Temperature 0 C – 40 C
* Overload 20 ms for % 500 over load
* Relative Humidity up to % 0 – % 95
* Acoustic Noise < 55 dBA
* Basic Advantages:
* Sensitive and fast TRUE RMS reading modul
* in 20 mil second reading
* Fast regulation modul
* 200Volt * 50Hz = 10.000 Volt/Second
* Improvable output regulation structure
* Reading power parameters
* Modular card structure
* No need maintenance. It is completely static.
* Beginning failure doesnt exist.
* Ability to work under whatever with cos μ load
* Ability to discriminate Non-Linear load and short circuit.
* In the case of short circuit It prevents blowing of fuse
* Reoperating from short circuit.
* In the case short circuit none of static switch is to spoil
