• SERVOREX 33 HI

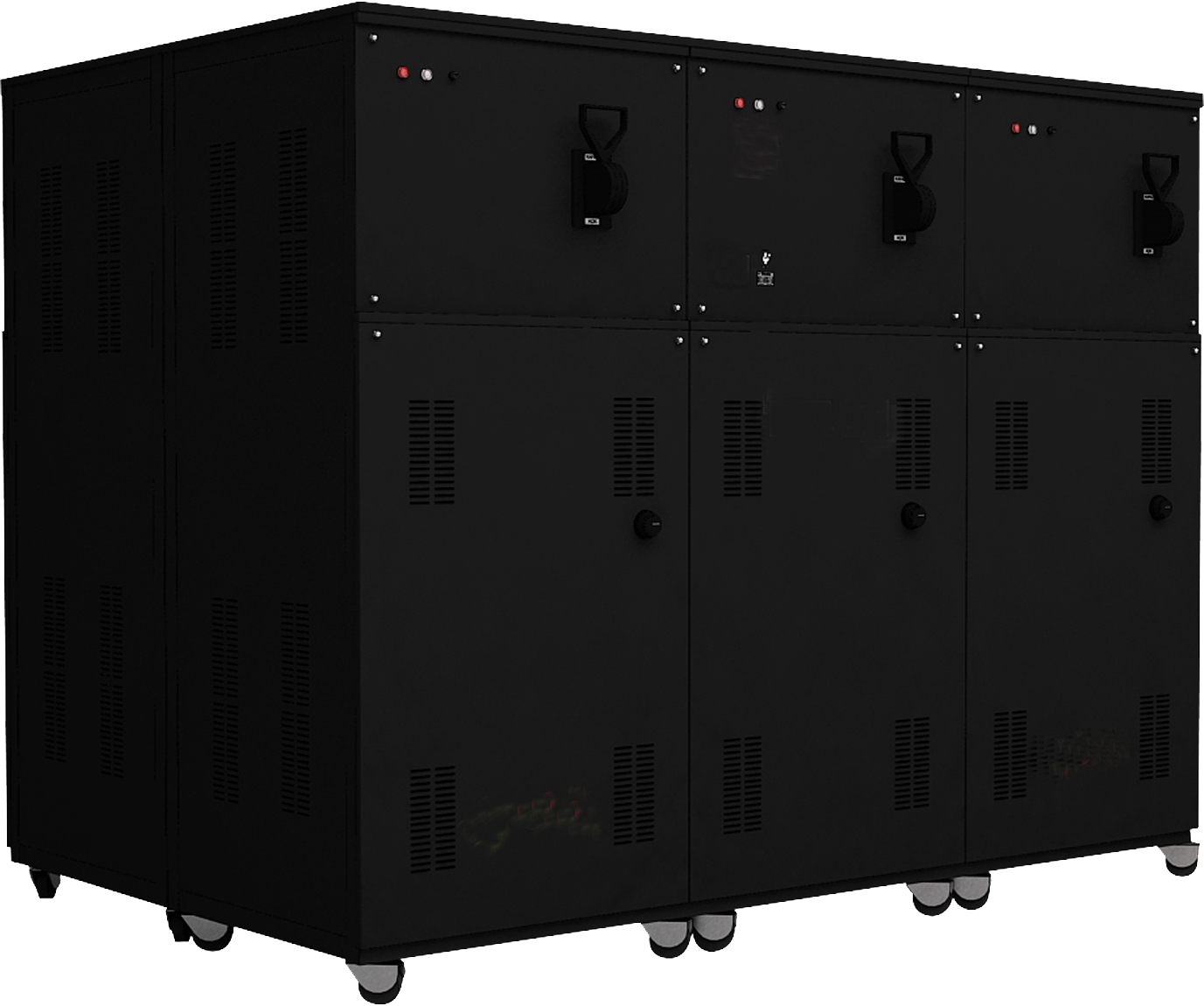

SERVOREX 33 HI

SERVO TYPE AVR / 200-3000 kVA


A voltage stabilizer is a power device destined to be positioned between the mains and the User. The purpose is to ensure that the User is fed a voltage subject to a variation much lower (±1% ,±3%,±5% with regards to the nominal value) that the one guaranteed by the distributing system.

The stabilization is performed on the «true rms» voltage and it is not affected by harmonics in the mains. Due to the fact that the regulation does not involve any intervention on the sinewave, neither an appreciable harmonic distortion nor a phase displacement is introduced on the downstream line.

The stabilizer is not affected by the load power factor (cos φ) and can operate with a load percentage varying between 0% and 100% on each phase. Regulation speed depends on the input voltage variation percentage and on the type of construction.




Product Introduction Video

Innovasis Voltage regulators are servo drive structure, microcontroller controlled heavy duty devices which regulates mains voltage for critical loads.


• 3 phase in / 3 phase out
• Three phase voltage stabilizers regulates mains voltage and brings many advantages.
• Non-linear charges drive
• Wide power and voltage interval
• Fast Regulation
• High reliability thanks to Microprocessor and Smart Driver
• High efficiency
• Load transfer to Bypass via pole charge switch
• Safe and economic usage
• Overcurrent and overload protection (Optional)
• Digitally displayed status, input & output measurements
• 2 years warranty
• 10 years spare parts su
